The Fixed Acoustic Imager uses microphone array beamforming technology to obtain sound source distribution data, and cooperates with high-definition cameras to capture video images in real time. It can help users realize remote monitoring system based on local network (LAN, etc.), wide area network (WAN, ADSL, 4G and private network, etc.), and help users realize industrial digital transformation, and support remote real-time monitoring of video images.
As such, this provides facilities with further insight into product quality or safety issues, as well as the ability to rapidly detect them. Changes to compressors, pumps, pipes, cables, etc. can be understood in real time and in advance, rather than manually.

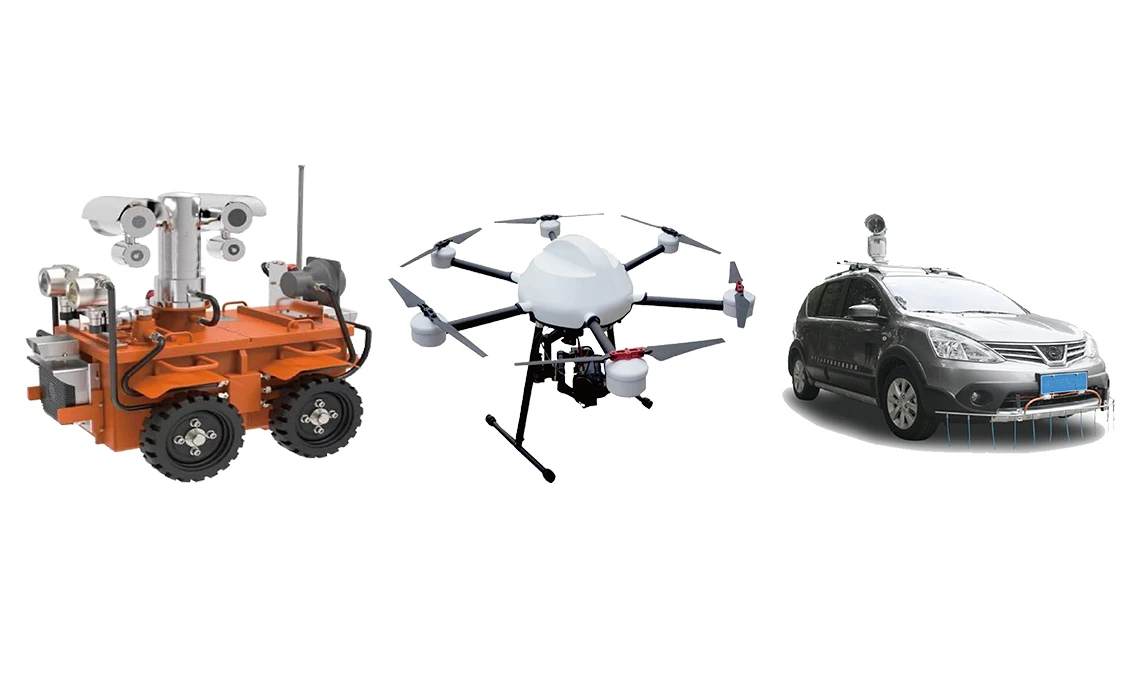

Can also be used as a payload for inspection, including UAV, robot, car or other mobile unit, Realizingmore intelligent inspection and monitoring applications.

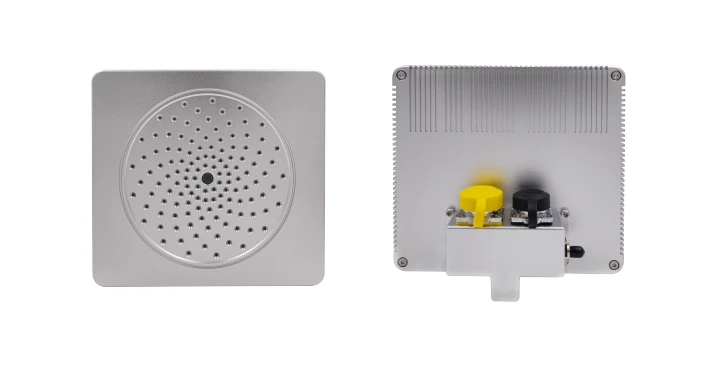

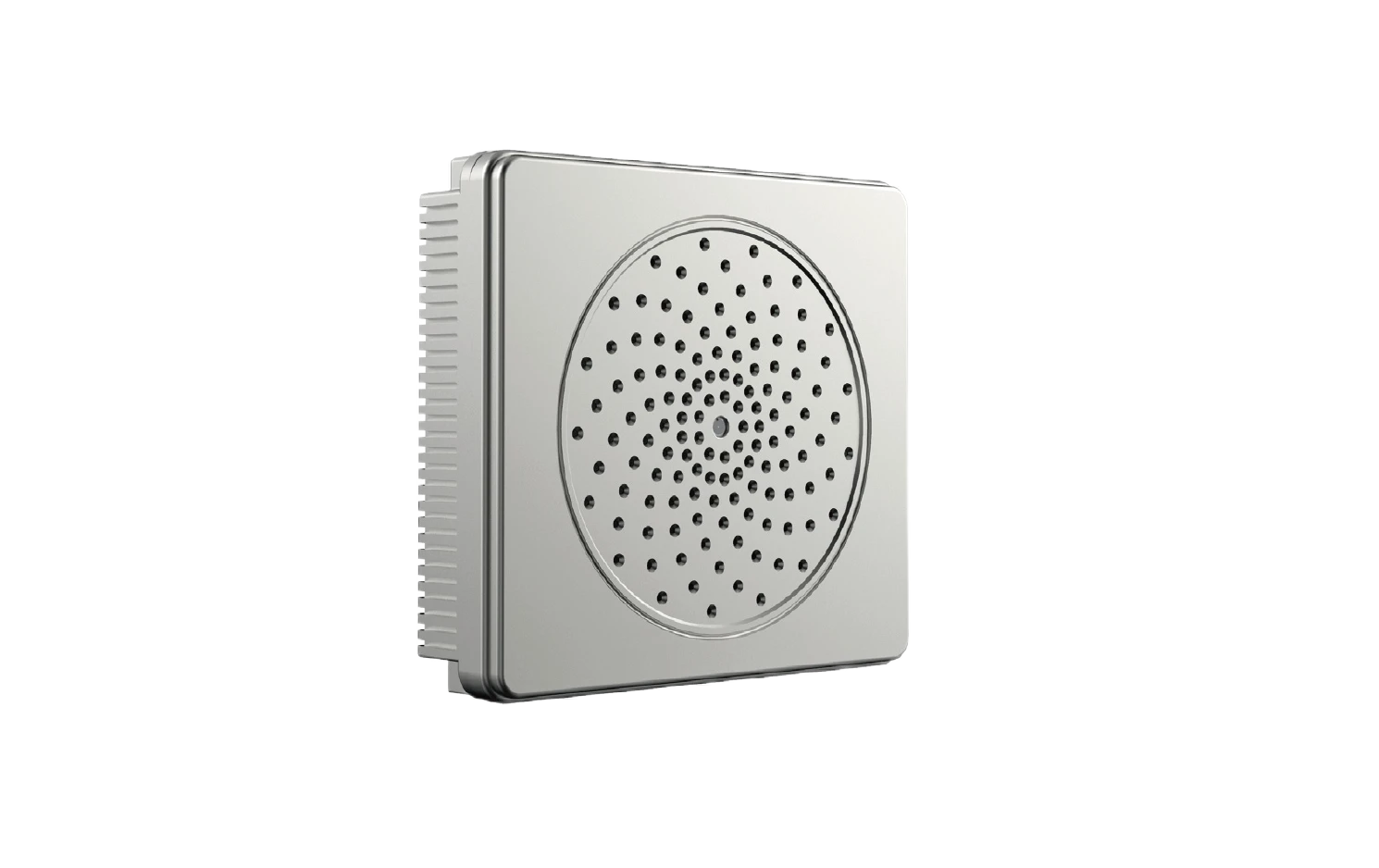

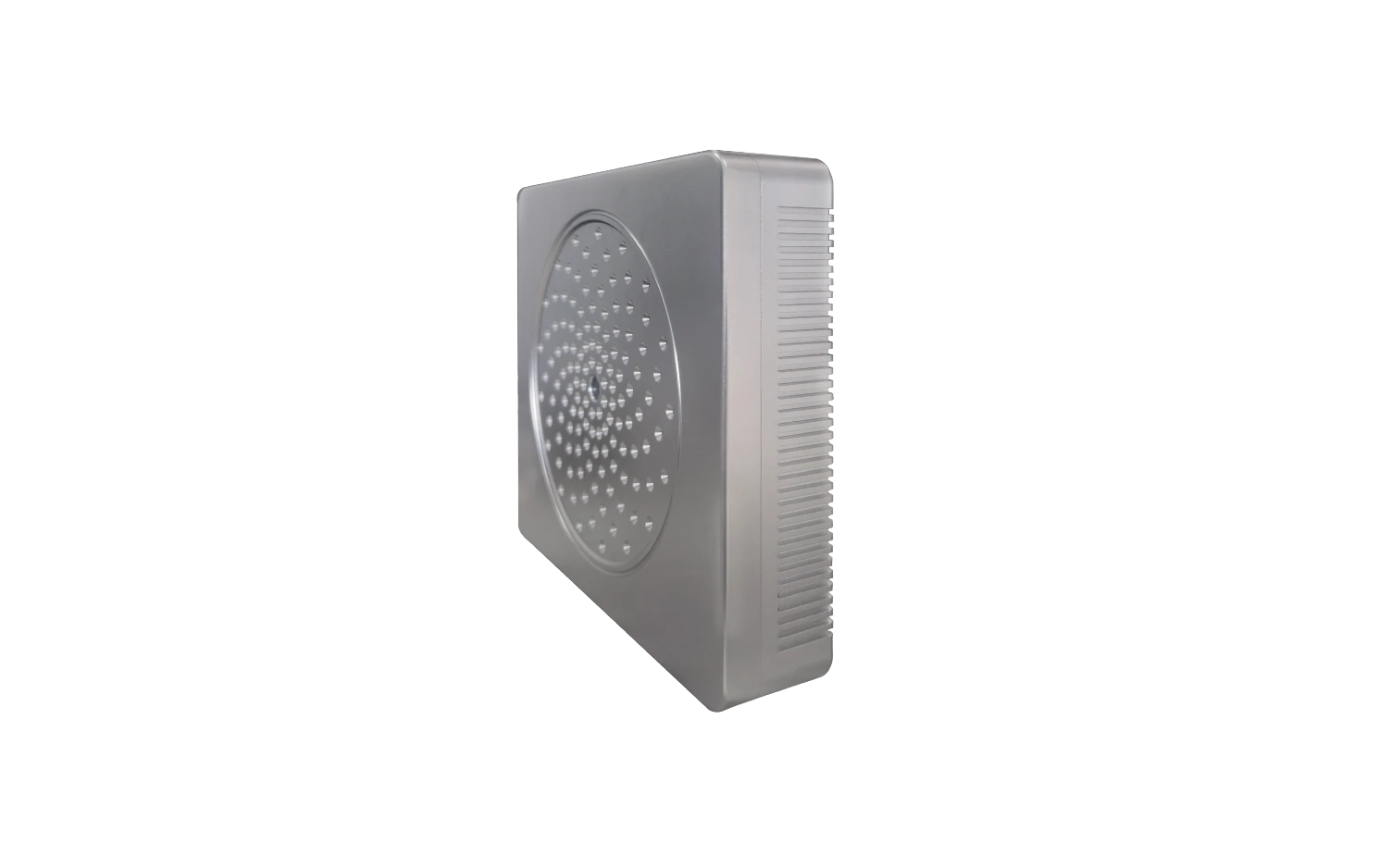

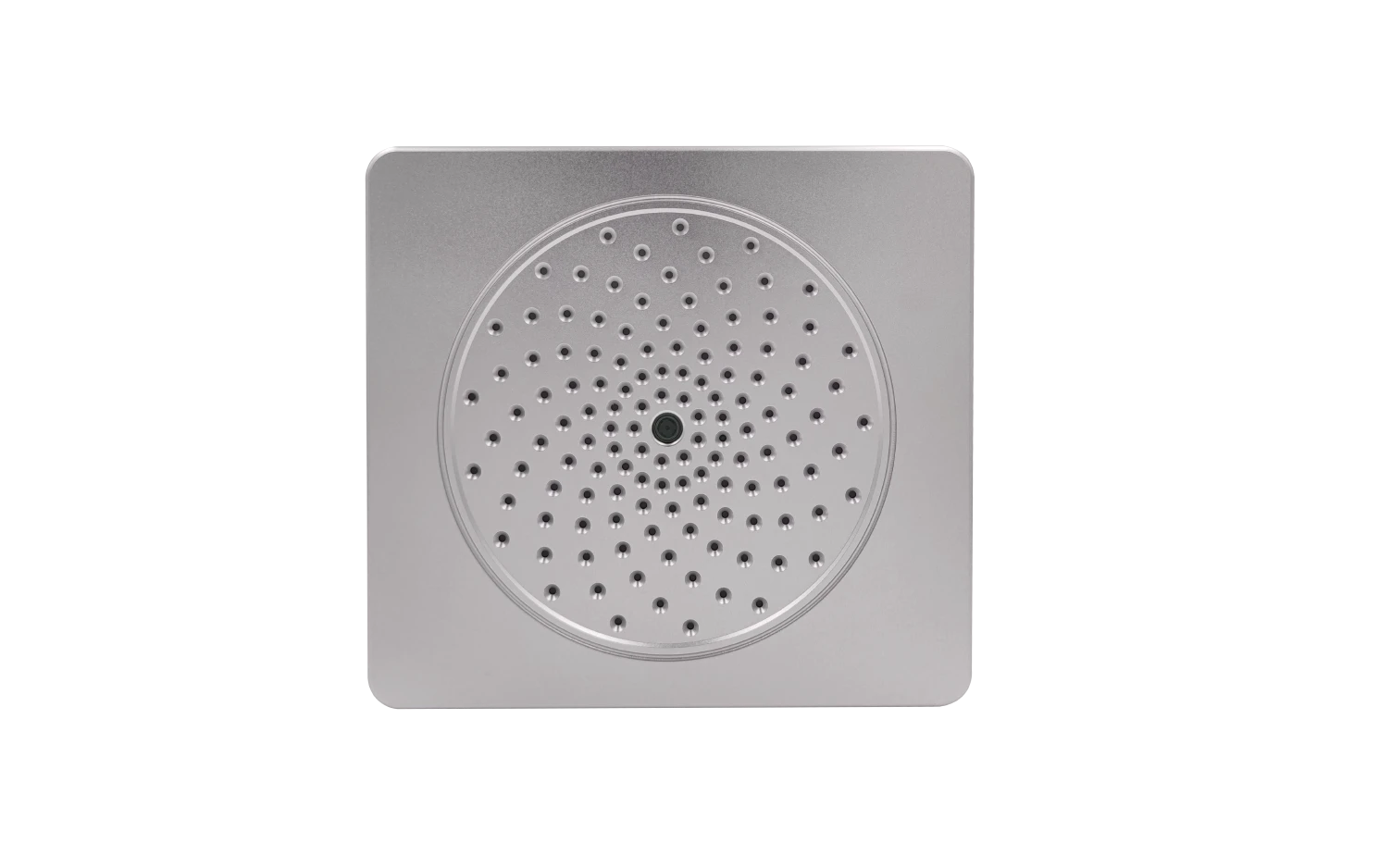

Fix CRY2623M acoustic imaging module in certain key areas, and achieve a full range of 7X24 hour fault monitor and alarm. Give you real-time, accurate information about the status of your equipment and instant notification of equipment failures.

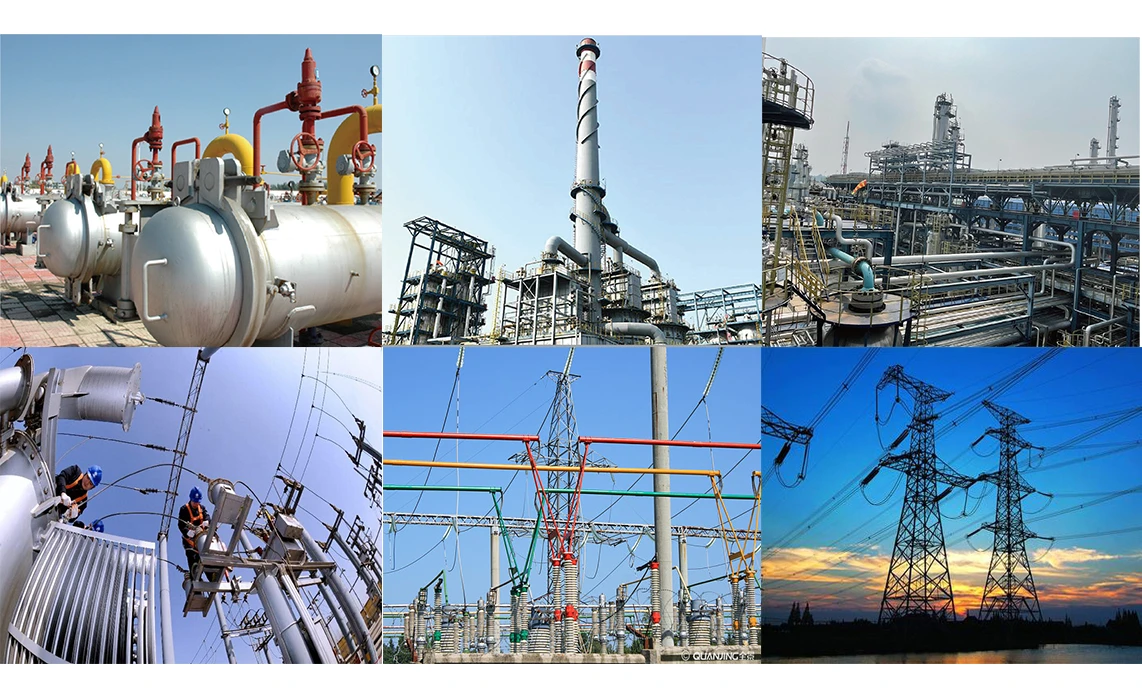

Priority areas containing dangerous gases. Key areas with a high probability of fault in complex pipelines. Key areas for testing that are difficult for inspectors to reach.
| Acoustic Specification | - |
|---|---|
|
Microphone Array |
128-channel MEMS Microphone
|
|
Effective Test Bandwidth |
2kHz-48kHz |
|
Dynamic Range |
0.5dB-12dB user adjustable |
|
Test Sound Pressure Level Range |
25.7dBA-132.5dBA |
|
Auto max/min dB gain |
User-settable, minimum test bandwidth 1kHz |
|
Number of Digits |
24bit |
|
Sound Image FOV |
62° |
|
Sound Image Frame Rate |
At least 25 FPS |
|
Leak Detection Rate |
10m 5bar 0.92ml/s 0.5m 5bar 0.55ml/s |
|
Detect Distances |
0.3m-120m |
| Camera | - |
|---|---|
|
Camera FOV |
62° |
|
Camera Focal Length |
3.04mm fixed focal length |
|
Camera Pixel |
8 million pixel |
| Display | - |
|---|---|
|
Resolution |
1024*600(614,400 pixels) |
|
Size |
7 inch |
|
Touchscreen |
Capacitive touch screen |
|
Brightness |
Adjustable |
|
Photo Notes |
Up to 5 photos notes for reference |
|
Source |
Show single or multiple sources |
|
Standard Palettes |
Grayscale, Ironbow, Blue-red |
|
Playback Function |
View photos, videos anytime, and add notes or tags |
| Storage | - |
|---|---|
|
Internal Storage |
About 8G |
|
External Storage |
TF memory card, at least 64G, expandable to 256G |
|
Data Storage Format |
jpg (Picture), mp4(Video), wav(Audio) |
|
Video Length |
5 minutes |
|
Digital Export |
TF card |
| Power | - |
|---|---|
|
Battery Capacity |
[email protected] rechargeable battery 1Xexternal battery package, continuous |
|
Battery Life |
4_6 hours operation time |
|
Charger |
USB Type-C port USB PD protocal supported, 15W |
|
Power Consumption |
15W for battery charge 29W for maxium power consumption |
|
Energy Managment |
Sleep/Auto power off modes |
| Interface | - |
|---|---|
|
USB3.0 Type-C USB host port
|
|
|
3.5mm headphone socket
|
|
| Operating Environment | - |
|---|---|
|
Operating Environment |
-20℃~+50℃ 10%-95% no condensation |
|
Storage Temperature |
-20℃~+60℃ |
|
Charging Temperature |
10℃~+45℃ |
| General Specification | - |
|---|---|
|
Ingress Protection (IP) |
IP54 |
|
Size |
272mm x 174mm x 42mm |
|
Weight |
1.7kg |
|
Warranty |
2 years |
|
Self-Diagnostic Notification |
Array-health test function to identify when microphone array needs attention |
|
System |
Linux system |
|
Certification |
CE, FCC, RoHS-compliant, MSDS, CNEX, ATEX (under qualification) |
| Supported Language | - |
|---|---|
|
English, French, Chinese, German, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Spanish, Swedish |
|
| Software | - |
|---|---|
|
Report Types |
Gas/Electricity, ISO 50001-compliant |
|
Analysis |
Waveform, Spectrum, Spectrogram, leakage assessment, discharge type discrimination |
